Anti-UAV Teaching and Training System

The Anti-UAV teaching and training system simulates Anti-UAV electronic countermeasure reconnaissance, navigation confrontation, and jamming suppression according to the real scene. It can provides hands-on experience and training for participants. The whole system includes anti-UAV electronic countermeasure experimental subsystem and Anti-UAV GPS/remote control jamming experimental subsystem. It allows participants to actively engage and experience various techniques for detecting, tracking, and disrupting UAVs and remote control systems.

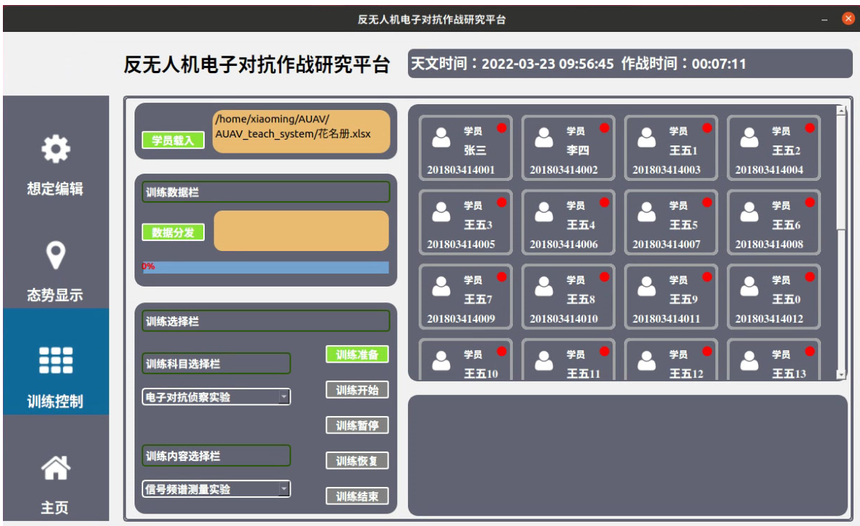

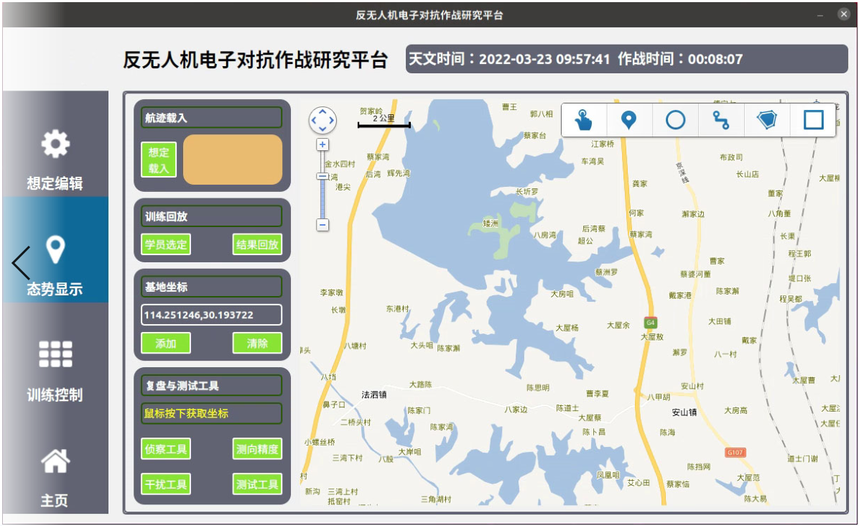

Anti-UAV electronic countermeasures combat research platform UI—1

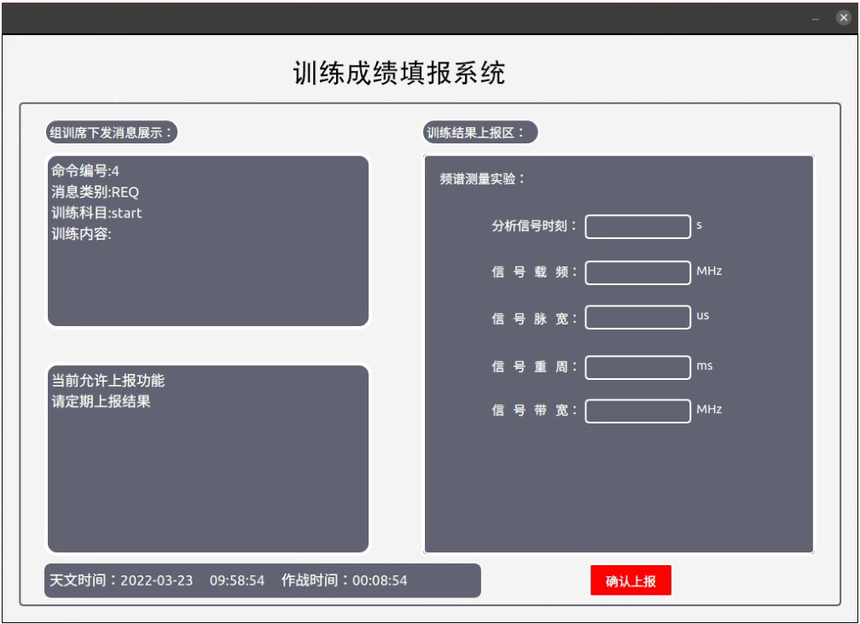

Training results reporting system UI—1  Training results reporting system UI --2

The anti-UAV electronic countermeasure reconnaissance experiment subsystem is mainly used to carry out telemetry link signal reconnaissance experiments such as UAV data transmission or image transmission, realize telemetry signal reconnaissance and analysis, and use the phase interferometer system to implement direction-finding of targets, so as to provide target indication for subsequent effective anti-UAV operations. The subsystem mainly includes electronic countermeasure reconnaissance hardware equipment, UAV telemetry signal reconnaissance control software, etc. The electroniccounter measure reconnaissance equipment is assembled using components such as direction-finding antenna, USRP, industrial computer, and other module, Its main function is to conduct reconnaissance and interception of UAV telemetry signals. The UAV telemetry signal reconnaissance control software consists of modules such as telemetry signal analysis and direction-finding control. It is responsible for analyzing UAV telemetry signals, performing direction finding, and is developed using LabVIEW and MATLAB, providing the capability for further customization and development.

The anti-UAV GPS/remote control jamming experiment subsystem is mainly used to carry out the suppression or deception interference experiment of the UAV airborne GPS navigation system and flight remote control, so as to realize the effective interference of the UAV GPS/remote control navigation system, so that the drone cannot obtain effective position information or obtains incorrect location information or control information. Anti-UAV GPS suppression jamming equipment mainly realizes the emission of highly realistic fake GPS navigation signals or high-power suppression jamming signals to the target UAV, thereby forming a deception of the target UAV GPS navigation system and remote-control system, which in turn affects the flight control of the UAV and deviates it from the intended flight route.

System Function：

ØRemote control and image transmission signal detection, recognition and perception

ØUAV direction finding;

ØGPS signal interference;

ØUAV data link interference;

ØDisplay map in real time.
